Some examples of collar transmitters with only one single battery up to 7 batteries with internal and external antennas, changeable batteries and expanding capability
L - 1 / ER3 [I]
On the left or above,
one ER3 batt. with internal antenna, weight approx. 30g for, marten and comparable.
L - 1 / ER3 [I, W]
On the left or above,
one ER3 batt. internal antenna and changeable 1 Ah battery, weight 70g here used for ozelots.
L - 1 / ER3 [A]
On the left or above,
one ER3 batt. and ext. antenna, weight approx. 39g, marten and comparable.
L - 2 / ER1733 [I]
On the left or above,
2 ER1733 batt int. ant. suitable for foxes, raccoons, badgers.. weight approx. 70g, 4,4 Ah or with 2 ER3
and 60g suitable for wildcats too. (looks quite similar)
Q - 5 / ER3 [I]
On the left or above,
5 ER3 batt. int. ant. suitable for fox, badger... weight approx. 145g, 5Ah installed.
L - 4 / S1450 [A]
On the left or above, 4 S1450
batt. external
ant. 10Ah, these two went to leopards but also bigger neck
cirumferences have been realized with this model.
Weigt of this here was 335g.
Q - 1 / ER3 [A, W]
On the left or above,
is a pig dog transmitter with a single, changeable ER3 batt., weight varies with collar circumference, 170 -230 g.
Q - 5 / S1425 [A, EXP]
On the left or above,
is a 5 batt. S1425
expandable model, external antenna, lynx transmitter, 5 Ah installed, weight 125g.
Q - 7 / ER1733 [A]
On the left or above is a 7 batt. ER1733 lynx tansmitter, 15 Ah installed, external antenna, 250g.
L - 1 / ER1733 [A, EXP]
On the left or above,
a one ER1733 batt. external ant., expandable transmitter here used for juvenile foxes, 2,2 Ah, weight 65g
Batteries involved

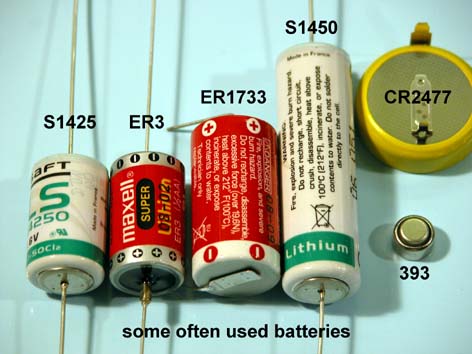

On the left or above you see some often used batteries from left to right 2 x 1/2AA size 1 x 2/3AA, one AA size and a CR 3V type, below a 393 silver oxyde 1,55V cell.

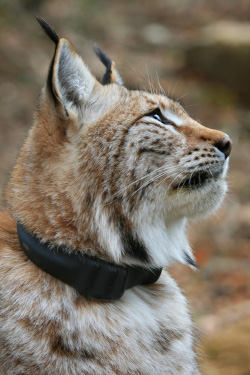

Q - 7 / ER1733 [A]
with a lynx inside.
